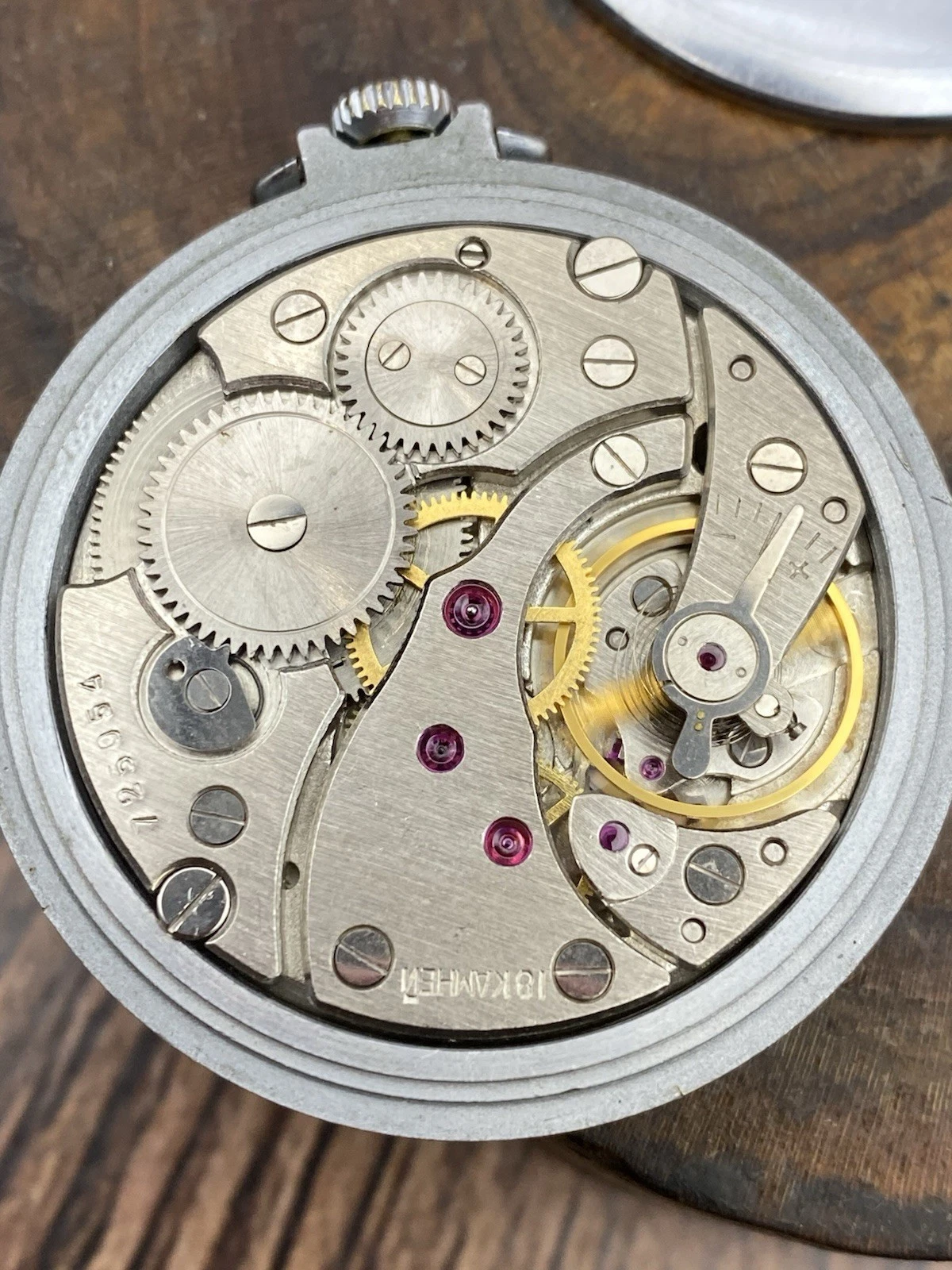

Molnija 3602

Very popular Soviet pocket watch movement

Factory: Chelyabinsk Watch Factory "Molnija"

Manual Wind 18 Jewels 36 mm

Production: 1947 – 2007

Jewels

36 mm

Diameter

18,000

A/h Beat

40h

Power Reserve

Download PDF

About

Molnija 3602 is a reliable manual-wind pocket watch movement produced by the Chelyabinsk Watch Factory from 1947 to the 2000s. It features 18 jewels, a lever escapement and a bimetallic balance with fine adjustment. This movement was widely used in military, railway and civilian pocket watches.

Quick Specs

ManufacturerMolnija (Chelyabinsk Watch Factory)

CountryUSSR

TypeManual Wind

Jewels18

Diameter36.00 mm

Height4.6 mm

Beat Rate18,000 A/h (2.5 Hz)

Power Reserve~40 hours

EscapementLever

Shock ProtectionNo

HackingNo

Production1947 – 2007

Used In Watches

Molnija Pocket Watch

Railway Watch

Military Gift Watch

Hunter Case Watch

Parts Catalogue

84 parts • Click any part to see repair options

Part #	Part Name	Category	Action
100	Main Plate	Plates	View ›
105	Barrel Bridge	Bridges	View ›
110	Train Wheel Bridge	Bridges	View ›
116	Escape Wheel Bridge	Bridges	View ›
122/5	Balance Cock	Bridges	View ›
125	Pallet Cock	Bridges	View ›
180	Barrel with Arbor	Barrel	View ›
195	Barrel Arbor	Barrel	View ›
201	Center Wheel and Pinion	Wheels	View ›
210	Third Wheel and Pinion	Wheels	View ›
224	Fourth Wheel and Pinion	Wheels	View ›
240	Cannon Pinion	Wheels	View ›
250	Hour Wheel	Wheels	View ›
260	Minute Wheel	Wheels	View ›
302	Regulator	Regulation	View ›
